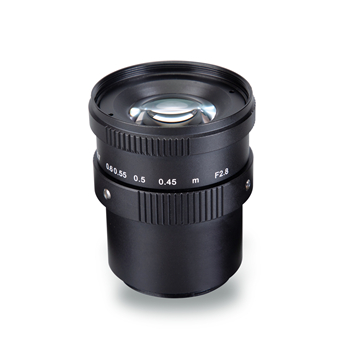

Color selector use linescan lens

share:
  • Description
  • Features
  • Download

  • Features:

    1. Optimize the imaging effect within the working range of 600mm color selection standard.

    2. M42*1 threaded interface, with the adapter interface can be matched with all kinds of interfaces.


    型號

    Model

    F50DMB28

    F50DMB40

    F50DMB28

    F50DMB40

    焦距(mm)

    Focal Length

    50mm

    50mm

    50mm

    50mm

    標(biāo)準放大倍率

    Standad Magnificaition

    0.0946

    0.094

    0.0946

    0.094

    像面尺寸(mm)

    Image Size

    φ30

    φ30

    φ30

    φ30

    光圈

    Iris(F)

    F2.8

    F4

    F2.8

    F4

    光學(xué)畸變

    Optical Distortion

    -0.61%

    -0.61%

    -0.61%

    -0.61%

    相對照度(%)

    Relative Illuminace

    95.5%

    95.5%

    95.5%

    95.5%

    工作距離(mm)

    Working Distance

    574

    574

    574

    574

    最優(yōu)工作距離(mm)

    Optimal Working Distance

    600mm-700mm

    600mm-700mm

    600mm-700mm

    600mm-700mm

    接口

    Mount

    M42*1

    M42*1

    M42*1

    M42*1

    法蘭距(mm)

    Flange Length

    12

    12

    5.9

    5.9

    分辨率

    Resolution

    5.5K 5μ

    5.5K 5μ

    5.5K 5μ

    5.5K 5μ
