Rear view lenses

share:
  • Description
  • Features
  • Download

  • HD picture quality and high cost-effective

    HFOV 110°~130° brings a wide   field of view, which can meet the requirements of rear view camera system of   different models. IP69K waterproof level can effectively prevent external   water infiltration.


    產品型號

    Model No.

    尺寸大小

    Sensor Size

    解像度

    Resolution

    (Mega Pixel)

    有效焦距

    EFL(mm)

    光學總長

    TTL(mm)

    光圈大小

    F.No

    視場角

    FOV

    高低溫
    Temperture

    (°C）

    防水等級

    Waterproof

    水平

    H

    垂直

    V

    對角

    D

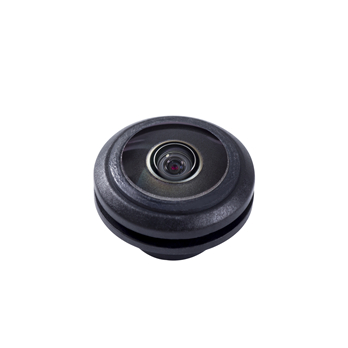

    SR1005D

    1/4“

    VGA

    1.13

    10.26

    2.2

    110°

    105°

    155°

    -40°C~ 85°C

    IP69K

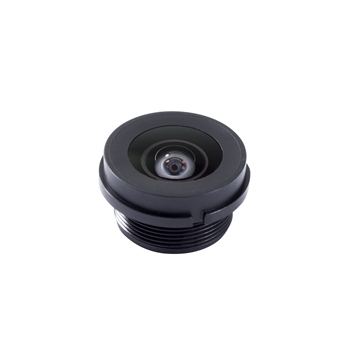

    SR1067A

    1/4“

    1M

    1.25

    12.89

    2.0

    135°

    85°

    150.9°

    -40°C~ 85°C

    IP69K

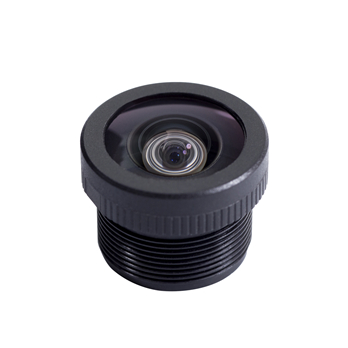

    SR1020A

    1/4“

    1.3M

    1.28

    12.85

    2.0

    119°

    97°

    138°

    -40°C~ 85°C

    IP69K
